Complete 3D Mold DesignMOLD DESIGN

Mold design is a kernel part of mold manufacturing...

Topmolders Engineering can design mold according to customer's requirement, such as DME, HASCO. We are proficient DME, HASCO hot runner molds, PC/home appliance/automobile/mobile phone/commodity/double-layer molds in European/American/Japanese specifications.

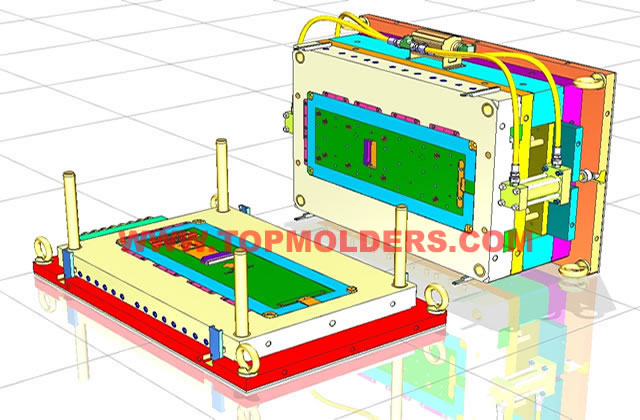

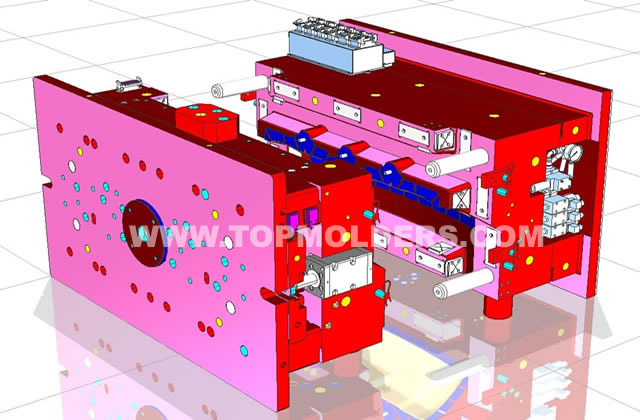

Topmolders Engineering can design mold for customer independently and design mold according to customer's requirement, if you need to get a mold design drawing, Whether you require a basic mold or a complex mold, we have the skills and experience to design your mold accurately and on time, We offer extensive 3D mold design services ranging from simple parting line splits to full 3D mold assemblies, All components of your product can be modeled in 3D to assure correct design and functionality, 2D references and detail drawings are finalized or exported to a variety of other CAD packages.

Topmolders Engineering adopt international advanced system - CAD/CAM/CAE in mold design and processing. We use professional software such as Pro-Engineer, Solidworks, Unigraphics. Customer provide the 2D drawing or 3D data in DXF, DWG, PRT, SAT, IGES, STEP format etc, or just send us the sample. We will scan the sample and make product blueprint, begin to design the mold assembly drawing just after customer confirm the blueprint, and customize the existing project.

Topmolders Engineering staff will work with you to develop the mold you need using three-dimensional modeling and state-of-the-art technology to ensure a precise result.

Topmolders Engineering will offer the mold assembly drawing for customer further discussion when necessary, considering about product parting line, gate, ejector position, water cooling layout, moving direction and distance of slide etc, then define a solution with which customer is the most satisfied.
